Linux Cached/Buffers memory

I won’t try to explain in details what Linux Cached/Buffers memory is. In a nutshell, it shows how much of your memory is used for the read cache and for the write cache.

Usually when you look at your system memory usage and see that almost all of the unused memory is allocated for Cached/Buffers, you are happy, because this memory is used for file-system cache, thus your system is running faster.

Today however I observed quite an interesting fact – what I said above is still correct, however you don’t know how often these cache entries are used by the system. After all, it’s not the cache memory usage (or size) which makes the system run faster, but the cache hit ratio. If the file operations get satisfied by the cache (cache hit), then your system is running faster. If the system needs to make a physical disk I/O (cache miss), then you’d need to wait for a good few milliseconds.

What are your options, in order to know if your file cache is actually being used or is just sitting there allocated, giving you a false feeling that your system is running faster thanks to the used cache memory:

  1. (hard) In order to actually know the Cache Hit/Miss ratios for block devices, you’ll need to dig deep into the kernel, as I already explained in the “Is there a way to get Cache Hit/Miss ratios for block devices in Linux” article.
  2. (easy) You can clear the Cached/Buffers memory regularly, see how fast and how much the cache memory grows back, and draw some conclusions about the actual Cache Hit/Miss ratios.

The latter is not a perfect solution, but in all cases gives you a better idea of your file-system cache usage, than just watching the totally used memory in Cached/Buffers, and never actually knowing if it is used/accessed at all.

Therefore, you can run the following every hour in a cron job:

sync ; echo 3 > /proc/sys/vm/drop_caches
sync ; echo 0 > /proc/sys/vm/drop_caches

The commands are safe (see reference for “drop_caches“), and you won’t lose any data, just your caches will be zeroed. The disadvantage of this approach is that if the caches were very actively used indeed, Linux would need to read the data back from the disk.

A real-world example

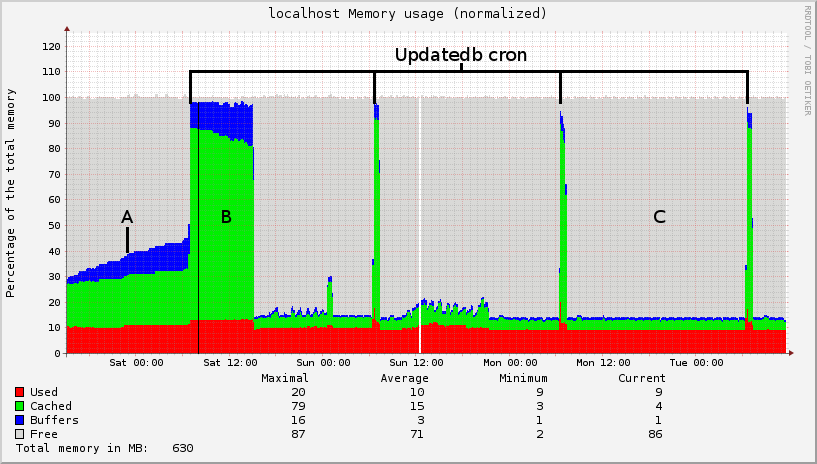

Here is how the Cached/Buffers graphics of a server of mine looks for the following few days:

Linux memory usage

Pay attention to the points of interest which are marked. Here is the explanation and motivation to write this article:

  1. (Point A) The beginning of the graph shows my system after it just booted, and I did some small administrative tasks on it. After that, one script runs regularly on the machine, and as we see, it doesn’t use much file-system cache, as it doesn’t do many file operations.
  2. Then every day at 06:25 the “/etc/cron.daily” scripts are run and some of them read all files on the file-system. Such a script is the updatedb cron job. Because of the great disk activity, the Buffers/Cache usage gets maximal, as all possible files and meta data are being cached in memory.
  3. (see “Updatedb cron” markers on the graphics) After one hour, the scripts finish and no significant disk activity is done on the system any more.
  4. (Point B) But the Cached/Buffers usage never drops down. The file cache doesn’t seem to expire, and is therefore giving us the false feeling that it is being used by our system all the time, thus making it faster. But it isn’t!
  5. On Sat 15:08 the Cached/Buffers cache is cleared manually by the command I provided above, and I installed it as an hourly crontab too.
  6. As you can see, right after the cache was cleared, we see the sad reality – the Cached/Buffers cache was filled with data that nobody needed or accessed, and the high memory usage by Cached/Buffers actually didn’t speed up our system. I grieve for a while and accept the reality, and also understand why so many I/O requests are issued to my EBS storage, even though the cache was so huge.
  7. (Point C) That’s how the actual daily usage pattern of this machine looks like. The Cached/Buffers memory cache is heavily underused on my system, as it doesn’t do much I/O work. This wouldn’t be visible if I don’t clear the cache every hour.

References:

About these ads

10 thoughts on “Linux Cached/Buffers memory

  1. Hello Ivan,

    how can I deactivate Filesystemcache on RHAT for dedicated filesystems. I have a SAP-System and the filesystem get huge of Memory

    Thanks in advance
    Salvatore

    • Unless the file-system itself has such an option, you can’t disable it otherwise. The VFS uses the cache globally for all mounted file-systems.

      Note that there is absolutely nothing wrong that all your available RAM is being used for cache (Cached and Buffers). Whenever an application running on your Linux needs the memory for something else, the OS will free the memory used for cache and will provide it to the application.

  2. I read that when most available RAM is used for cache this is a sign of hardware efficiency. How will I know when my web server needs more RAM to effectively serve its applications?

    • The problem is that even if most available RAM is used for cache, you don’t know if this cache gets hit for I/O requests. I can’t answer your question directly, but in general you need to monitor all resources on a server which could get exhausted (CPU, RAM, I/O, Network, etc) and upgrade accordingly.
